Benz Jetronic
The First Specialized Jetronic System Repair Center According To Company’s Diagram
Jetronic is a trade name of a manifold injection technology for automotive petrol engines, developed and marketed by Robert Bosch GmbH from the 1960s onwards. Bosch licensed the concept to many automobile manufacturers. There are several variations of the technology offering technological development and refinement.
Fuel accumulator
This part has the task of accumulating gasoline with high pressure in the fuel supply circuit (when the engine is off). Mitpan pointed out that the main task is to keep the fuel pressure constant in the circuit. One of the signs of its failure can be mentioned continuous starting when the car is hot
Idle Control Valve
The task of this part is to adjust the amount of excess air entering the engine. This value varies according to the position of the gas valve and engine performance. For example, when the engine load increases, during acceleration, the cooler, steering hydraulics, etc. are opened and closed, all of which are controlled by the steering ecu. This part cannot be repaired and must be replaced even though the probability of failure is 10%
Diaphram&Oring
Diaphragm and O-rings are the main components of the Jetronic system. Also, their thickness and material are very important. Using different diaphragms and non-standard o-rings will damage the fuel dispenser. Signs of failure include high fuel consumption, poor acceleration, late engine start when hot, engine vibration, etc.
Fuel Injector
The injector is responsible for spraying fuel. Also, fuel atomization for combustion is one of the main tasks of this part. Signs of failure include engine vibration, high fuel consumption, black smoke, vibration at the beginning of acceleration. Due to wear and tear and the life of its internal spring, the part has weakened and is not able to atomize the fuel and cannot spray it and must be replaced. Washing and repairing this part (Csi injectors) has no meaning and is pointless.
Pressure regulator
FRP or Fuel Pressure Regulator. This part is responsible for maintaining the proper pressure inside the fuel system for the best spraying of the injectors, which in both cases (high or low pressure) causes damage to the operation of the engine and dependent parts. This part in 90% Items can be adjusted (with the device).
Warmup Regulator
WUR or warmup regulator, which is responsible for regulating the fuel pressure when the engine is cold or hot. This part gets out of adjustment over time due to wear and tear. Among the problems that can be mentioned due to the failure of this part are high consumption, long start when the engine is hot, and the smell of raw burning fuel, as well as the vibration of the engine when it is hot. This part can be repaired and adjusted (with the device) in 90% of cases
Potentiometer
This part informs the ecu of the opening of the mixture valve, and after processing, the ecu sends the command to the stepper motor to measure the amount of excess air. The main task of this part is to adjust idle speed and close the stepper motor during acceleration. Among the signs of its failure, we can mention a drop in engine speed during the cooler, high or low engine speed, too high or low engine speed. This part cannot be repaired and must be replaced if damaged
EHA
This part has the task of regulating the pressure inside the fuel dispenser and is controlled by ecu. Among its malfunctions, we can mention high consumption, black smoke, strong raw burning smell, as well as fuel leakage from inside. This part can be repaired in 90% of cases. and it is adjustable. It should also be noted that the screw inside is extremely sensitive and can only be adjusted by the device.
Our Services
Renovation of EHA
Replacing the internal O-ring to prevent fuel leakage and also adjusting with the device according to the company’s standard

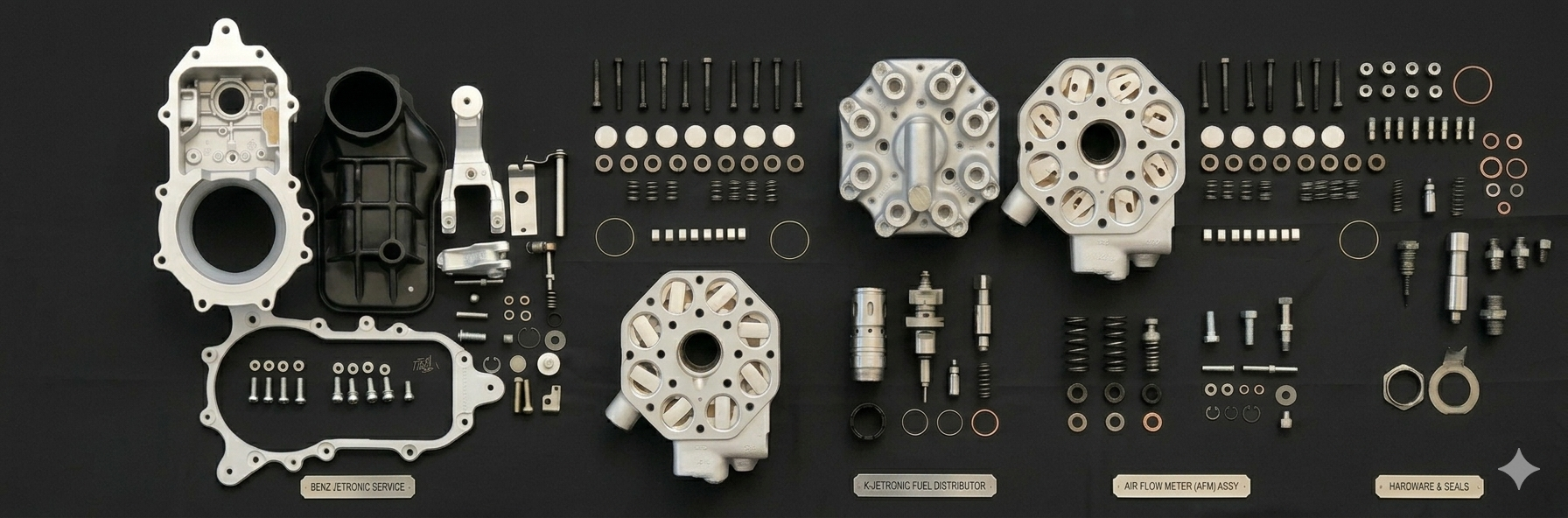

Jetronic system rebuild
Reconstruction and expert review of Jetronic system defects
Fuel pressure Adjustments
do not worry if the fuel pressure regulator setting is broken! we return its setting
About Us
we always try to restore and adjust the Jetronic system of your car in the best possible way with a lot of experience and advanced devices. Expert examination of all cases is the distinguishing feature of this service center. because we try to check all the settings very carefully and fix all the .
problems
We can source your fuel dispenser from all over the world and send you a repaired fuel dispenser, just give us a call.
Benz Jetronic company
Farzad Homaypoor
Contact us
+905527798793 +989121021087
